Brand Name : Yuntong
Model Number : YT--F-2550
Certification : CE , SGS
Place of Origin : Hebei
MOQ : 10 Sqm
Payment Terms : T/T, Western Union,PayPal
Supply Ability : 300Sqm/Week
Delivery Time : 5-8 Work Days
Packaging Details : Carton Box , Wooden Case
Material : Stainless Steel 304 , 316 , 316L
Wire Rope : 2.5mm to 4.0 mm
Rope Constructions : 7 x 7 , 7 x 19 , 1 x 19
Mesh Orientation : Horizontal , Vertical
Mesh Shape : Rhombus , Diamond
Application : Anti-Falling Mesh , Security Fence
Mesh Angle : 60 degree
Mesh Style : Ferruled or Knotted
Hole Size : 50x86mm , 60 x 104mm
AISI 316 Grade Stainless Steel Wire Rope Anti-Falling Mesh Fence
Wire Rope Mesh Specifications Sheet :
Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
20 x 35mm | YT-1235 | ||||
25 x 42mm | YT-1225 | YT-1625 | |||
30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Rope Wire Mesh : Stainless steel 304,304L,316,306L etc.
SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0 |
Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out.including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.
![]() |

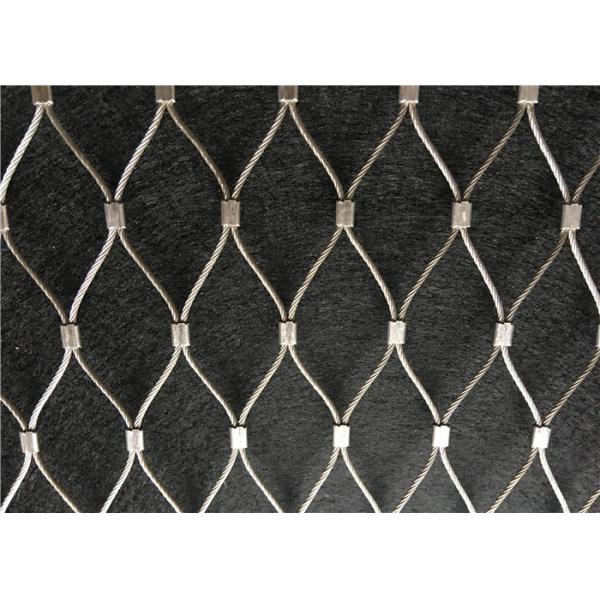

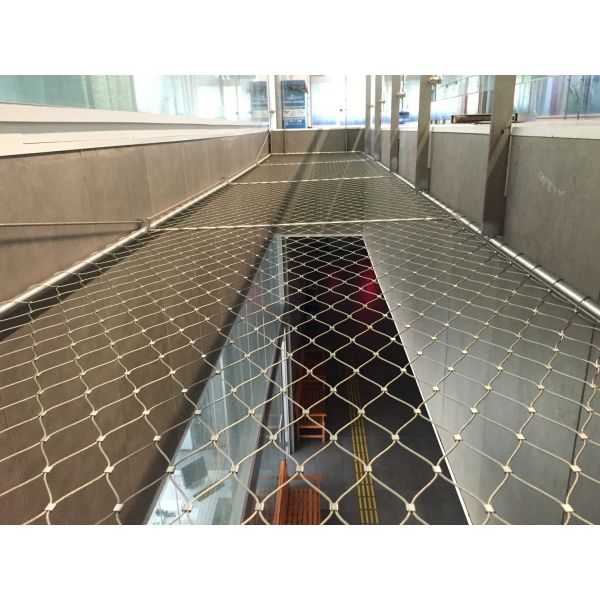

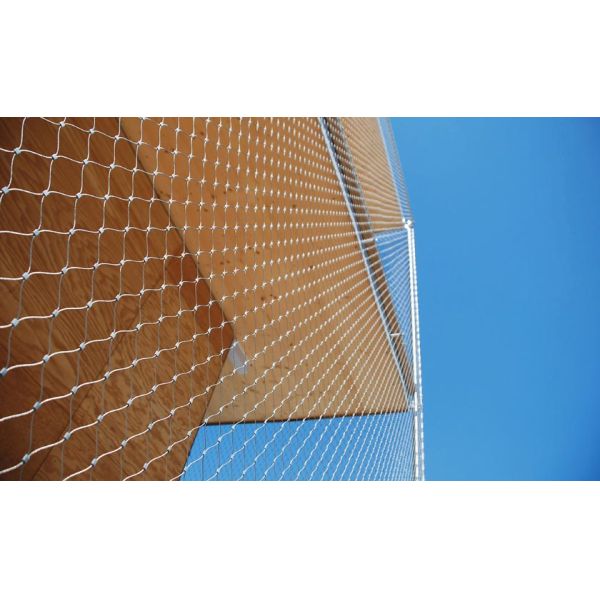

AISI 316 Grade Stainless Steel Wire Rope Mesh Anti - Falling Mesh Fence Images |
