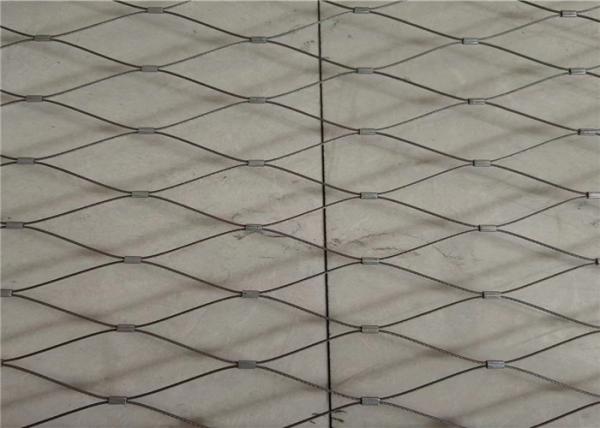

Stainless Steel Zoo Wire Mesh For Bird Rain Forest Mesh

  • 1
  • 2

Brand Name : Yuntong

Model Number : YT--F-F

Certification : CE , SGS

Place of Origin : Hebei

MOQ : 10 Sqm

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 300Sqm/Week

Delivery Time : 5-8 Work Days

Packaging Details : Package film for each piece,Several pieces packed in 1 carton

Product Name : Stainless Steel Zoo Wire Mesh For Bird Rain Forest Mesh

Material : Stainless Steel 304 , 316 , 316L

Rope Constructions : 7 x 7 , 7 x 19 , 1 x 19

Application : Animal Enclosure , Monkey Enclosure , TIger Enclosure , etc

Finished : Ultrasonic Bath , Black Oxide

Wire Rope : 1.2 mm to 4.0 mm

Mesh Orientation : Horizontal , Vertical

Mesh Type : Ferruled or Knotted

Mesh Angle : 60 degree , 90 degree

Contact Now

Stainless Steel Zoo Wire Mesh For Bird Rain Forest Mesh

Smooth surface,unique lines,the overall structure strong,generous appearance.Good toughness,strong clmbing ability,impact resistance,it is not easy damaged by outside force impact deformation,has excellent buffer.Product good transport installation,light connect fully,use long time,can and blends into the surrounding enviironment,hav played a very good decorative and protective effect.

Zoo Wire Mesh Specifications Sheet :

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120

1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

2. Hand woven mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

3. Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Recommended Monkey Enclosure Zoo Wire Mesh:

Material Cable Diameter Hole Size Normal Break
SS304/316/316L 3/32" (2.4MM) 2.5" x 2.5" 920 LBS
SS304/316/316L 3/32" (2.4MM) 2" x 2" 920 LBS
SS304/316/316L 5/64" (2.0MM) 1.5" x 1.5" 676 LBS
SS304/316/316L 5/64" (2.0MM) 2" x 2" 676 LBS
SS304/316/316L 1/16" (1.6MM) 1.5" x 1.5" 480 LBS
SS304/316/316L 1/16" (1.6MM) 1.2" x 1.2" 480 LBS

Stainless Steel Zoo Wire Mesh For Bird Rain Forest MeshStainless Steel Zoo Wire Mesh For Bird Rain Forest Mesh
